• Switch Lock (Spaded)

Switch Lock (Spaded)




Tubular Key Switch Locks


  • Features Baton's 7000 series 7-pin tumbler tubular key system.

  • Offers up to 600,000 unique key combinations.

  • Triple plated alloy housing.

  • NAMA standard 3/4" diameter with one or two flats.

  • Available keyed-alike or keyed-different.

  • Factory rekeyable.

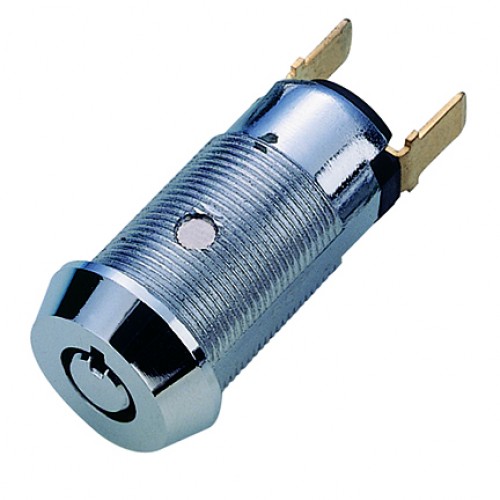

7234 Series switch lock

Switch lock with 1 set of spade type attachment installed.


Stock No. Housing Dia No. Terminals, Type Switch Type No. Key Pulls
7234-15 KD 3/4", 2 flats 2, spade Momentary OFF-ON 1
7234-10 KA 3/4", 2 flats 2, spade Constant OFF-ON 1
7234-100 KD 3/4", 2 flats 2, spade Constant OFF-ON 1
7234-231 KA 3/4", 2 flats 2, spade Constant OFF-ON 2
