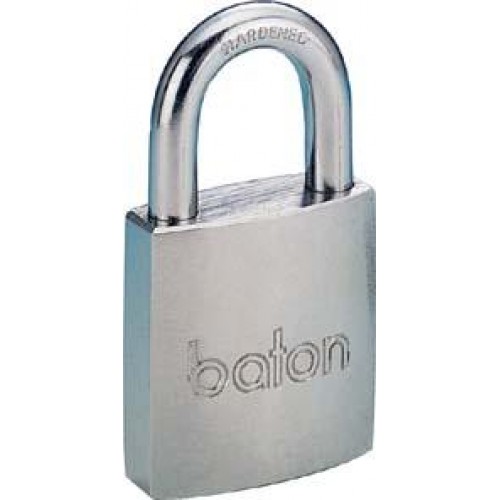

"U-Chang" Field-Rekeyable Brass Padlock
- Features Baton's "U-Chang" 8-pin tubular key system.
- Quickly rekey the lock to any of the 8 combinations using a change key without removing and reassembling the lock.
- Chrome plated solid brass body.
- Triple plated case hardened steel shackle.
- Double latched automatic re-locking mechanism.
- Key removable only in the locked position.
- Available keyed-alike or keyed-different.
- Replacement cylinders are available for field replacement.
| Stock No. | Description | Case Width | Shackle Dia | Shackle Clearance |
| 7860-45 | Complete lock | 45mm (1-3/4") | 9mm (23/64") | 28mm (1-1/8") |
| 7860-46 | Complete lock | 45mm (1-3/4") | 9mm (23/64") | 50mm (2") |
| 7860-47 | Complete lock | 45mm (1-3/4") | 9mm (23/64") | 76mm (3") |
| 7860-16 | Replacement Cyl | 5.8" dia | - | - |
